- TBS5520SE Multi-standard TV Tuner USB Box
TBS5520SE Multi-standard TV Tuner USB Box
TBS5520SE Multi-standard TV Tuner USB Box
TBS-5520SE je multi-štandardt TV tuner USB Box - externý USB box pre príjem DVB-S2X / S2 / S / T2 / T / C2 / C / ISDB-T, Všetky Rozlíšenia a kodeky (Napr: 1080p FullHD, 4k, MPEG, H. 0,264, HEVC 265 a mnoho ďalších) sú podporovane, ale v závislosti na Vašom PC hardware / software
Product features
Digital USB TV receiver box for TV and sat radio receiving
Supports DVB-S / S2 / S2X, DVB-C / C2, DVB-T / T2 / ISDB-T
USB2.0-Box
All resolutions and codecs (e.g.: 1080p, FullHD, 4K, MPEG, H.264, HEVC and many more) are supported, but also depending on your PC-hardware/software
Plug & Play Installation
Manual and scheduled recording of Digital-TV / Radio
Teletext
TimeShift function to Pause Live TV
Electronic Program Guide (EPG)
DiSEqC 2.0, USALS, Unicable compatible
IR remote control
Full support for 32-Bit and 64-Bit operating systems
Software application with multiple functionalities for TV reception
Specification
DVB-S2/S/S2X:
Symbolrate: 1 to 45 Msps
FEC:
DVB-S/S2:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X:
QPSK: 13/45, 9/20, 11/20
2_4_2_APSK: 100/180, 104/180
8PSK: 23/36, 25/36, 13/18
8_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30
16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
4_12_16rb_APSK: 2/3
4_8_4_16_APSK: 128/180, 132/180, 140/180
DVB-T2/T and T2-Lite:
Receiving channels: VHF Band, UHF Band
Bandwidth: 1.7, 5, 6, 7, 8 MHz
FEC: QPSK, 16QAM, 64QAM, 256QAM
FFT-Mode: 1K, 2K, 4K, 8K, 16K, 32K
Code-Rate: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C & ITU J83 Annex B:
QAM demodulator
FEC decoder
1 to 7.2 MSymbol/s
DVB-C2:
Bandwidth: 6, 7, 8 MHz
FEC (LDPC/BCH) decoder
COFDM demodulator: 16QAM to 4096QAM
ISDB-T:
COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 Decoding
Connections and other details

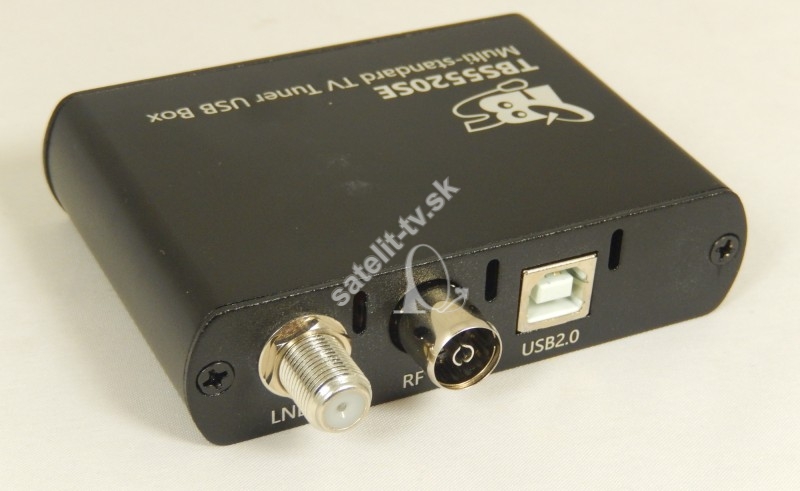

A Satellite TV antenna input and input for cable- terrestrial receiving
IR receiver input
Max. dimensions of the Box (W x D x H in cm): 7,5 x 9 x 2,5
Weight: ca. 0,35kg
Minimal System Requirements
Operating system (32-Bit and 64-Bit): Windows® XP, Vista®, Windows7®, Windows8.x, Windows 10 Linux
CPU for SDTV: min. Pentium3, 1 GHz or similar AMD Athlon or video-decoding over graphic chip
CPU for HDTV: min. Pentium3, 3 GHz or similar AMD Athlon (Dual Core recommended) or video-decoding over graphic chip
Recommended 1GB of RAM
Hard dsik with min. 1GB free capacity
Graphics card with min. 64MB memory
Sound card with DirectX® 9-Support or higher
Available USB Port
Capable for digital sattelite receiver, cable or terrestrial receiving
TBS-5520SE je multi-štandardt TV tuner USB Box - externý USB box pre príjem DVB-S2X / S2 / S / T2 / T / C2 / C / ISDB-T, Všetky Rozlíšenia a kodeky (Napr: 1080p FullHD, 4k, MPEG, H. 0,264, HEVC 265 a mnoho ďalších) sú podporovane, ale v závislosti na Vašom PC hardware / software

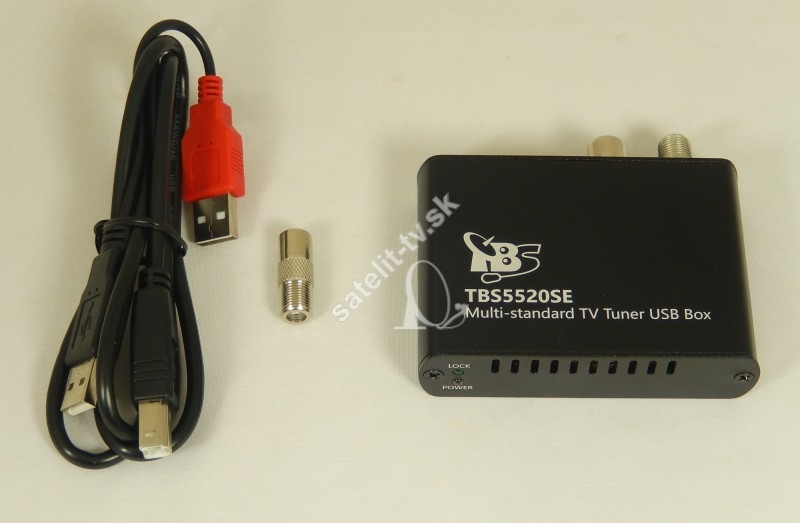

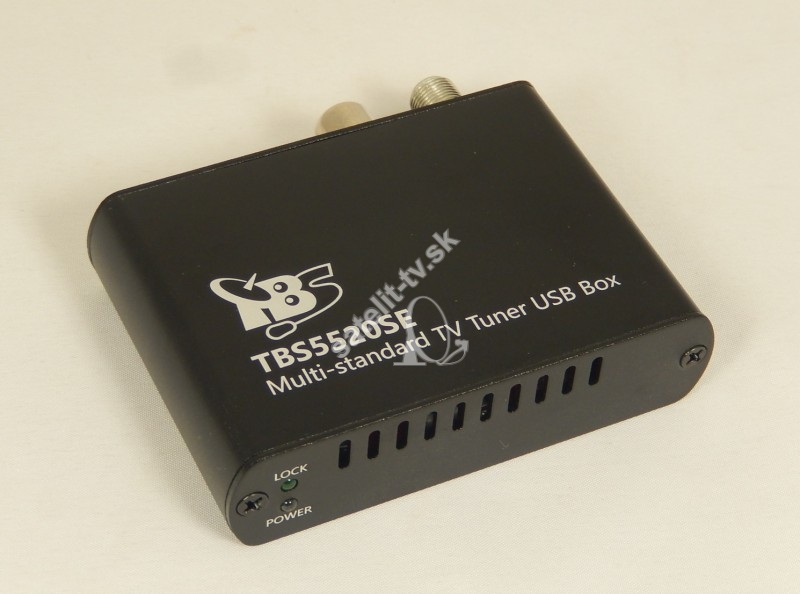

Fotogaléria TBS5520SE Multi-standard TV Tuner USB Box
Súvisiace produkty
26,90 €
